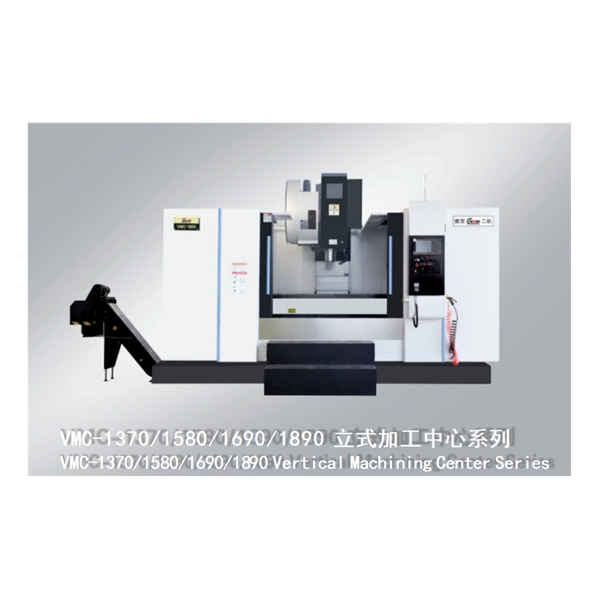

VMC-1370

VMC-1580

VMC-1690

VMC-1890

X axis stroke

mm

1300

1500

1600

1800

Y axis stroke

mm

700

800

900

900

Z axis stroke

mm

650

680

600

600

Distance from spindle end face to worktable

mm

190-890

120-820

105-705

115-835

Distance from spindle center to column protection surface

mm

757

810

950

950

Table size

mm

1400×700

1700×800

1800×900

2000×900

Max capacity

kg

1000

1500

1600

1800

Table T-groove

mm

5-18/153

5-22/135

5-22/165

5-22/165

Spindle taper

BT50

BT50

BT50

BT50

Spindle speed

rpm

6000

6000

6000

6000

Spindle motor

KW

11

15/18.5

15/18.5

15/18.5

Three axis motor （X/Y/Z）

KW

3/3/3

3/3/3

3/3/3

3/3/3

X/Y/Z axis rapid moving speed

m/min

24/24/15

20/20/15

20/20/15

20/20/15

Positioning accuracy

mm

JIS±0.005/300

JIS±0.005/300

JIS±0.005/300

JIS±0.005/300

Tool magazine capacity

Pcs

24

24

24

24

Machine weight

T

9

12

13

14

Machine size (L× W  × H)

mm

3900×3200×3500

4300×3320×2970

4494×3644×3254

4900×3470×3400
