In this page, just show some samples, contact with us to get more models!
If you have the brand you want, could check with us!

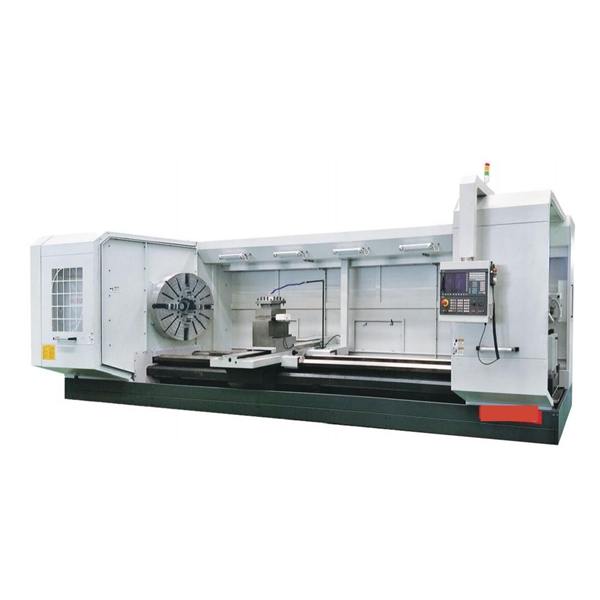

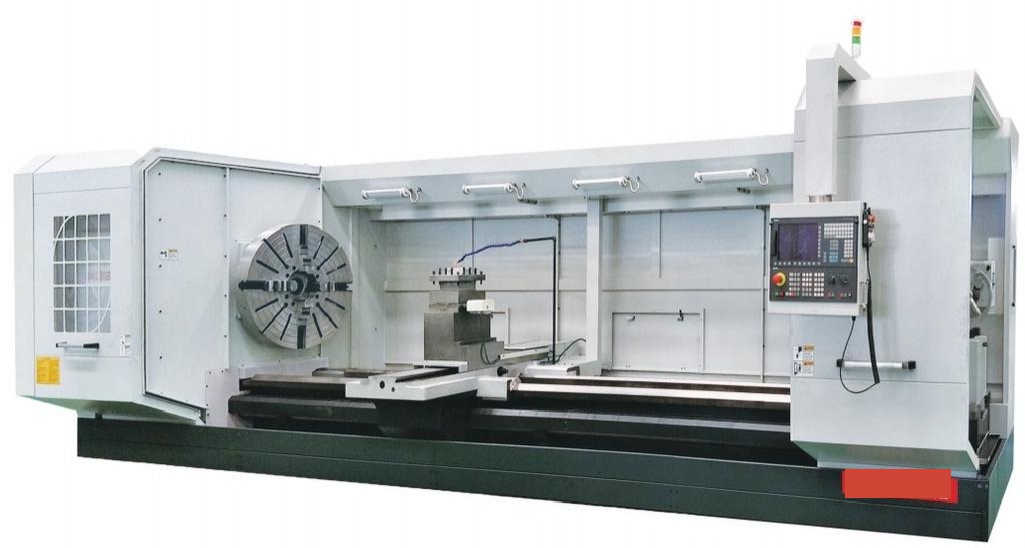

The main products are conventional engine lathe, CNC Lathe, pipe threading lathe, CNC pipe threading lathe,slant bed CNC pipe threading lathe, Oil Cylinder CNC Lathe and CNC turning center etc., with the annual production capacity more than 1000 sets. Our products are widely used in industries world widely including petroleum exploiting, geological prospecting, mining, chemical industry, pipeline network construction machinery and ship building etc.
|
Schneider Electric, NSK bearings, Siemens 808 system |
|||
|
Items |
Unit |
Parameters |
|
|
1、Processing range |
Swing diameter on bed |
mm |
Φ630 |
|
Max turning workpiece on slides |
mm |
Φ340 |
|
|
Max machining diameter of workpiece (with short disc) |
mm |
Φ630 |
|
|
Mini machining diameter of workpiece (with tailstock) |
mm |
Φ30 |
|
|
Max machining length of workpiece ( between centers) |
mm |
7000 |
|
|
Max cutting length |
mm |
6750 |
|
|
Loading wieght on bed |
T |
4 |
|
|
Slide width |
mm |
550 |
|
|
2、Spindle
|
Spindle head type |
|
C11 |
|
Spindle through diameter |
mm |
Φ104 |
|
|
Spindle bearing |
mm |
NN3032K、6028、 NN3026K、160TAC20X+L |
|
|
Spindle shifts |
|
Manual three shifts (shift is stepless) |
|
|
Spindle speed range |
r/min |
20-150、80-350、200-800 |
|
|
Three-chuck disc diameter |
mm |
Φ320 |
|
|
Spindle motor |
kW |
11 |
|
|
3、Taistock
|
Tailstock diameter |
mm |
Φ120 |
|
Tailstock move length |
mm |
250 |
|
|
Tailstock dead center |
|
Mose 6 |
|
|
Tailstock move in horizontal |
mm |
±15 |
|
|
4、Feed axie
|
Feed motor (X/Z) |
N·m |
10/22 |
|
Feed axie fast move speed (X/Z) |
m/min |
4/6 |
|
|
Maxi feed axie move |
axs |
320/6850 |
|
|
Mini feeding unit |
|
0.001mm |
|
|
4. Cutter holder |
|
|
4 station electric tool holder |
|
Cutter holder capacity |
|
4 |
|
|
The vertical distance from the spindle center to the tool installation reference surface |
mm |
32 |
|
|
Cutter size |
mm |
32×32 |
|
|
7、Lubricating |
Lubricating type |
|
Automatic intermittent lubrication |
|
Lubricating pump capacity |
L |
2 |
|
|
8、Cooling |
Cooling head height |
m |
7 |
|
Cooling pump flow |
L/min |
30 |
|
|
Cooling tank capacity |
L |
120 |
|
|
Cooling pump power |
W |
250 |
|
|
9、Accuracy （Samples instandard） |
External turning accuracy |
|
IT7 |
|
External turning Ra |
μm |
1.6 |
|
|
External turning roundness |
mm |
≤0.005 |
|
|
Diameter consistency of finishing outer circle |
mm |
0.03/300 |
|
|
Finishing end face flatness |
mm /mm |
0.025/φ300 |
|
|
Feed axie receitposition accuracy (X/Z) |
mm |
X:0.009 |
|
|
Feed axie position accuracy (X/Z) |
mm |
X:0.03 |
|
|
10、Weight and dimension |
Machine weight |
kg |
7700 |
|
Machine dimension (L*W*H) |
mm |
9300×1750×1800 |
|
